The most popular wire balustrade kit on the market now available in the BlackLine range of blackened stainless steel. Combine with BlackLine wire rope for a sleek, modern finish that disappears into the background.
Very popular, neat and versatile DIY friendly wire balustrade kit for 3.2mm wire rope. Perfect for both flat sections or stair/angled sections between timber posts. The fittings pivot on the lag eye screws, which help the wire to autocorrect into a level position (flat sections) or exactly to the angle required (stairs). Requires hydraulic swaging. Note: not suited for use in areas subjected to salt spray such as beachfront properties.
Black Stainless
This sleek, black wire balustrade kit provides a minimal profile for your balustrade. Combine it with BlackLine wire and black posts to give a modern, understated look to your balustrade.

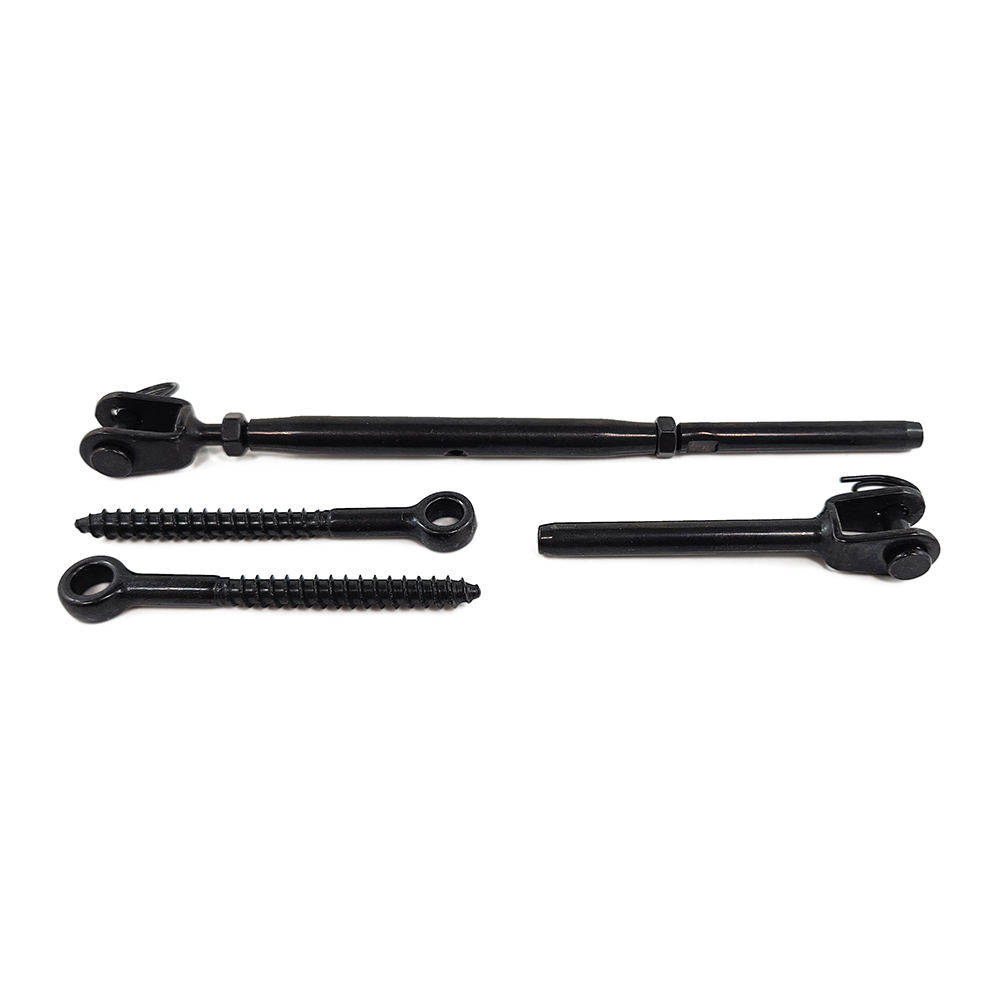

Perfect for fixing wire rope runs between timber end posts, this exceptionally popular streamlined wire balustrade kit features a Jaw/Swage Bottlescrew M5 x 3.2mm, a Fork Terminal M5 x 3.2mm and 2qty M6 x 60mm Lag Eye Screws
Apart from its inherent neat and sleek appearance, the two major benefits with this massively popular system are ease of installation and versatility. We would argue is it one of the easiest wire balustrade kits to install. The pivot point provided by the lag eye screws for the bottlescrew gives you the flexibility for use on flat sections of wire rope runs as well as for angled (stair) sections. Even if you don't drive the lag eye screws in perfectly straight, the bottlescrew and fork terminal will pivot and adjust to give you a straight run. In comparison some other systems require you to install the fittings completely straight and square or risk wire runs with unsightly angles.
Suitable for 3.2mm wire including 7x7, 1x19 and 7x19 constructions. Because 1x19 wire rope has a higher tensile strength, has the least amount of stretch and is less flexible than 7x7 and 7x19, it is very commonly used with stainless swage fittings such as with this kit. 1x19 wire is also more aesthetically pleasing than 7x7 or 7x19, it's smoother due to its helical (spiral) construction and as such can physically accommodate more wire in the 3.2mm than other constructions.
All in blackened stainless steel , these fittings require hydraulic swaging/crimping, such as with an entry level 5T light duty hydraulic swaging tool or, more easily with an 8T heavy duty hydraulic swaging tool. Please note: wire is not included in this kit and can be purchased separately here.
You can do it all yourself by hiring the 30T Hydraulic Swaging Press (Melbourne only), or by purchasing one or a light duty hydraulic swaging tool.
It's recommended to use a purpose built lag eye screw driver bit to easily drive the lag eye screws into your timber posts (pre-drilling recommended).
Also recommended is the bottlescrew spanner to simply and easily adjust the bottlescrew tensioners.
DO NOT USE in saline/salt prone environments especially areas subjected to salt spray from the coast. Any use within this environment will corrode the finish which cannot be rectified and will void any warranty. If your project is subject to this kind of environment, please contact us for clarification and alternative options.
Avoid using harsh cleaners, chemicals and abrasives on and around the BlackLine wire and fittings. The blackened surface of the stainless steel may be stripped off, discoloured or degraded.
AVOID acid based cleaners such as oxalic acid (deck cleaner), vinegar or InnoShine B570 / InnoGel B450.
USE a mild, pH neutral cleaner, such as orange citrus or mild detergent with a non-abrasive cloth.
| Product Material | Blackened Stainless Steel |
|---|---|
| Swaging System | Hydraulic Swaging |
| Wire Rope Diameter | 3.2mm |
| Product Specifications |
|
| Bulky item | No |
Known Incompatible Products
DO NOT USE use in saline/salt prone environments especially areas subjected to salt spray from the coast. Any use within this environment will corrode the finish which cannot be rectified and will void any warranty. If your project is subject to this kind of environment, please contact us for clarification and alternative options.
Care Instructions
BlackLine Wire & Fittings
Avoid using harsh cleaners, chemicals and abrasives on and around the BlackLine wire and fittings. The blackened surface of the stainless steel may be stripped off, discoloured or degraded.
AVOID acid based cleaners such as oxalic acid (deck cleaner), vinegar or InnoShine B570 / InnoGel B450.
USE a mild, pH neutral cleaner, such as orange citrus or mild detergent with a non-abrasive cloth.
A darker sheen can be restored with light oiling.
